Description
Technical Data Sheet
|

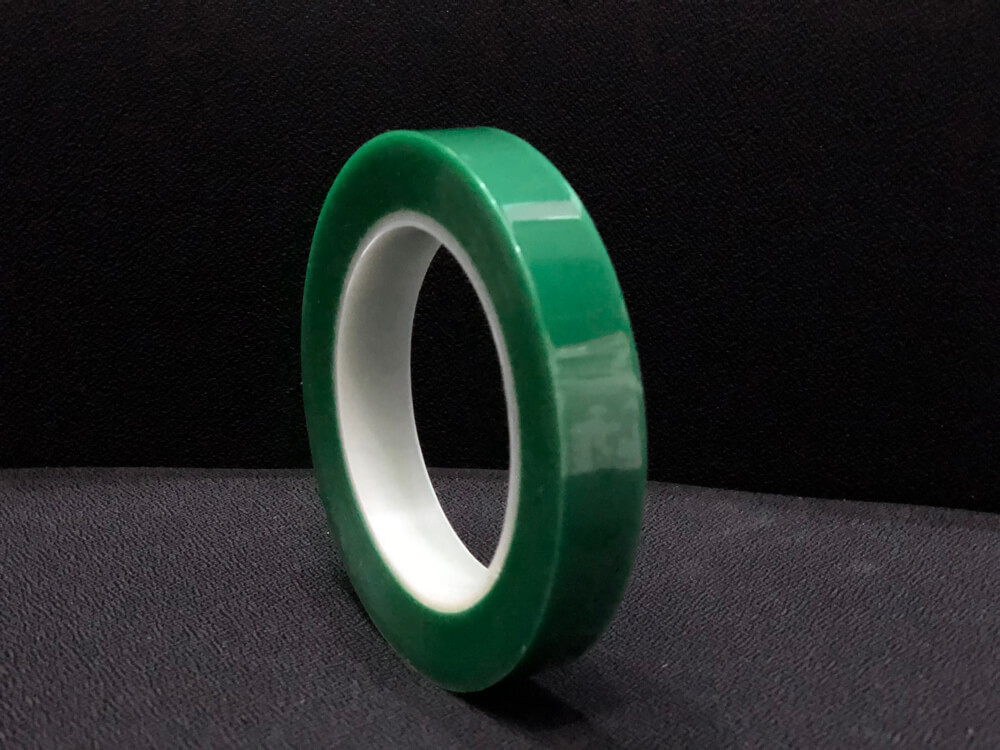

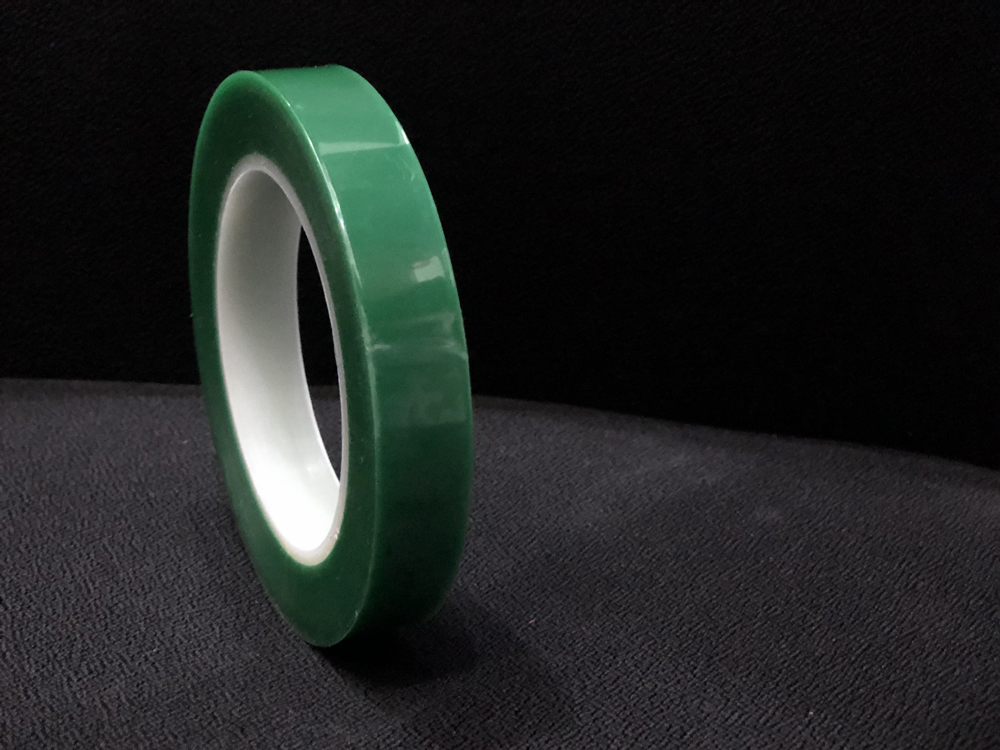

GREEN SILICON TAPE |
DESCRIPTION
Polyester film, single coated with a silicone pressure sensitive adhesive.
APPLICATIONS
▪ General-purpose high temperature masking and powder coating applications
PRODUCT BENEFITS
▪ High-temperature silicone adhesive ▪ Withstands 400°F baking cycles
▪ Removes cleanly after use
| Total Thickness (no liner) | 0.0033” (0.084 mm) |
| Adhesive Thickness (silicone) | 0.0013” (0.033 mm) |
| Carrier Thickness (polyester) | 0.0020” (0.050 mm) |
| Adhesive Colour | Green |
Adhesive Test Data
Peel Adhesion (PSTC 1) Oz./Inch (N/25mm)
35 10
Tensile Strength lbs./Inch (N/100mm)
50 286
Elongation 100%
The values given are typical values and do not constitute a specification. The user should determine whether the tape is suitable for the intended application.
Storage
Tape should be stored in its original packaging in a cool, dry area away from direct sunlight. Surfaces to which tapes is applied should be clean, dry and free of grease, oil or other contaminants.
