Description
Technical Data Sheet
|

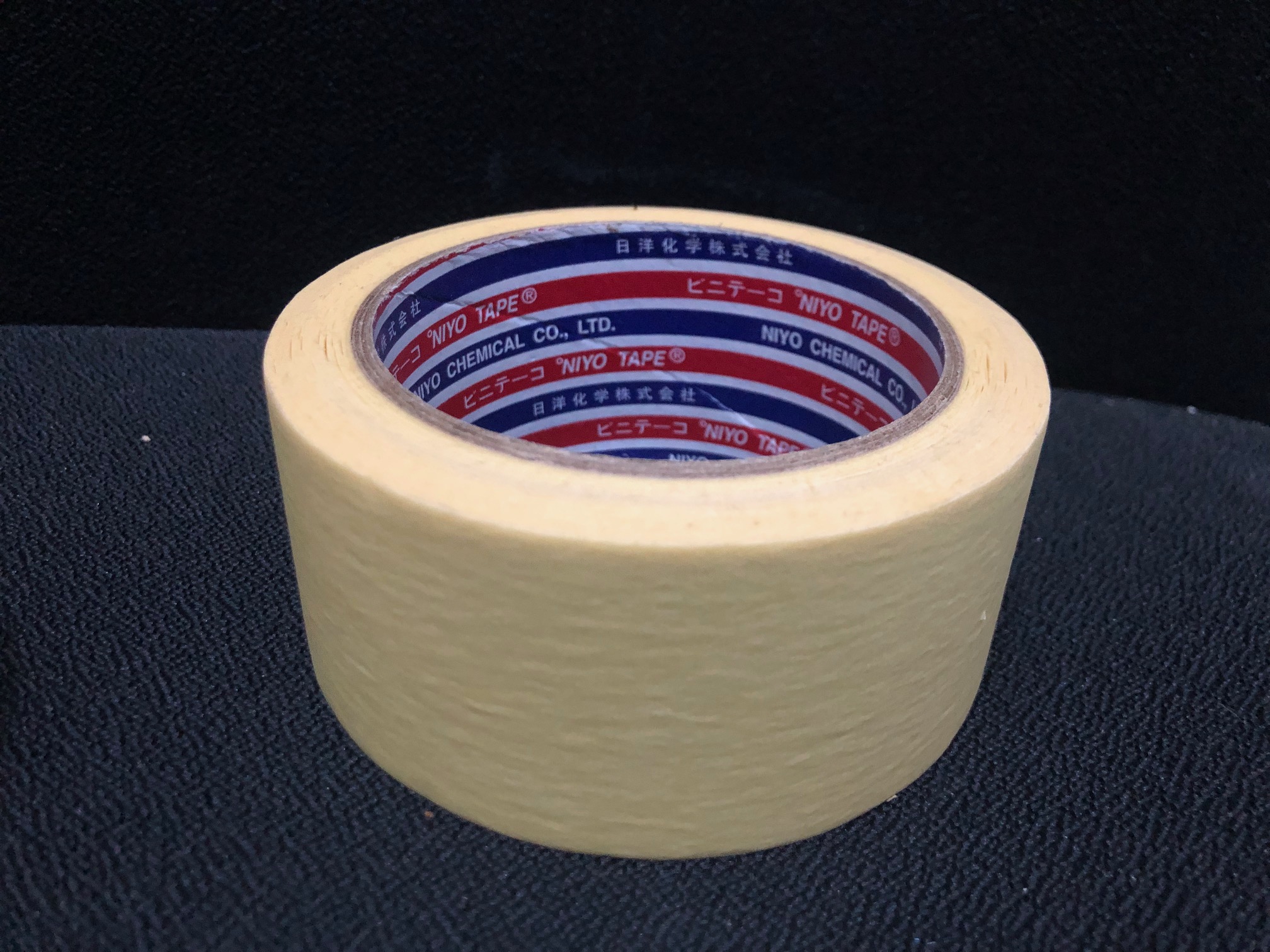

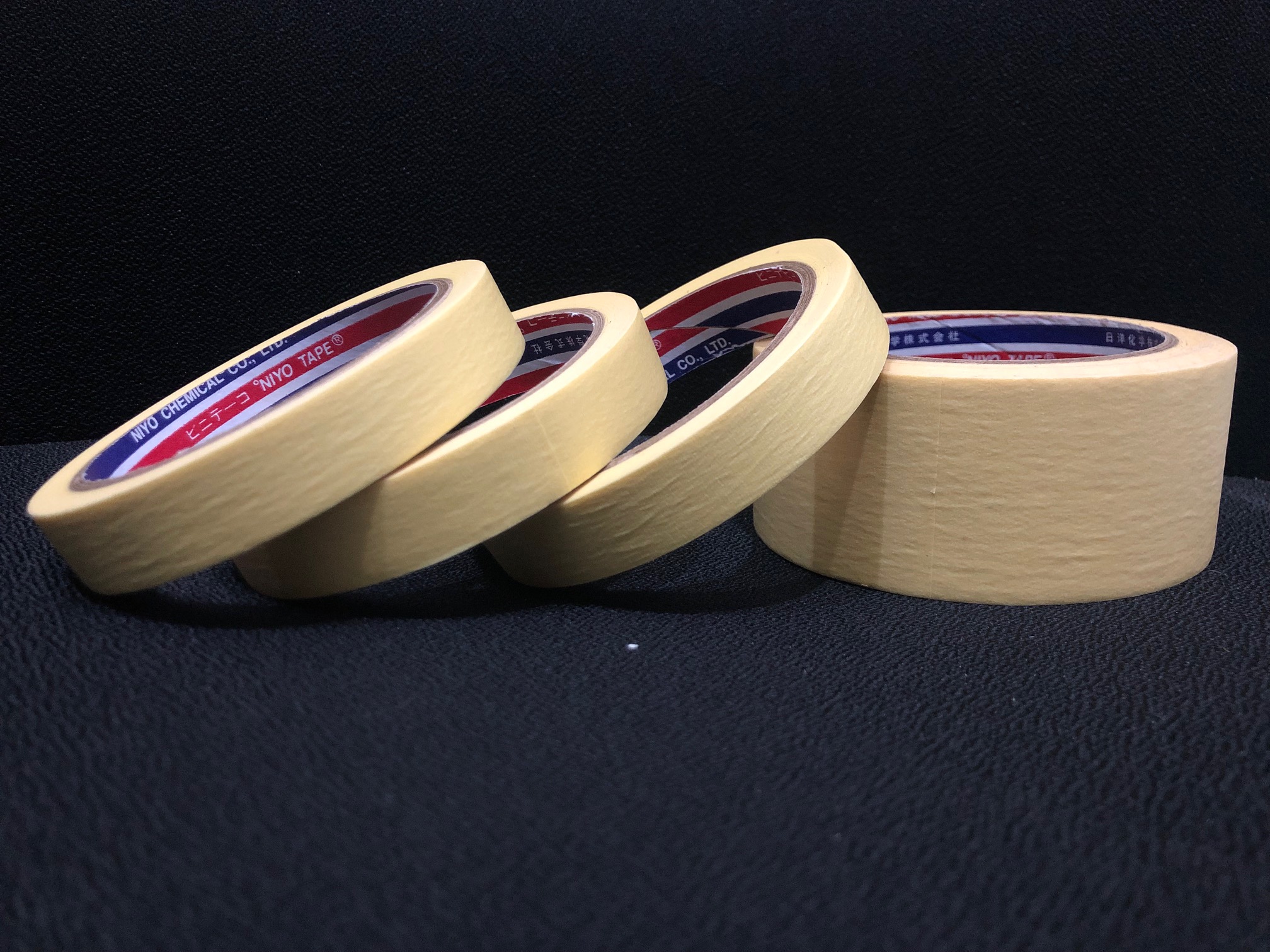

#5515H – HIGH TEMP MASKING TAPE |
Description A conformable/ flexible, high quality semi-bleached crepe paper, coated with natural/ synthetic rubber pressure sensitive adhesive capable of withstanding bake temperature up to 203°F (95°C) for up to one hour and/or exposure to ultra-violet (UV) light for up to (5) hours, #5515H offers consistent conformability and tensile strength for general purpose bundling, protecting, and various industrial applications. Product can be qualified to meet Federal Specifications PPP-T-42C, Type I and UU-T-106, Type I as well as C.I.D. A-A-883, Type I.
Nominal Values
| PRODUCT | 5515H |
| TOTAL WEIGHT
(g/m2) |
89 ± 3 |
| THICKNESS
(mm) |
0.137 ± 0.015 |
| PEEL ADHESION
(g/inch) (oz/in) (N/100mm) |
450↑
(15.9↑) (17.4↑) |
| INITIAL TACK
(cm) |
2↓ |
| HOLDING POWER
(hr) |
30↓
|
| TENSILE STRENGTH
(kg/15mm) (N/100mm) |
4.6↑
(300.7↑) |
| ELONGATION
(%) |
10 ± 4 |
| TEMPERATURE RESISTANCE
(Max.)(°C) |
95 |
TEST METHOD : Peel Adhesive : ASTM-D3330
Initial Tack : PSTC-6
Tensile Strength : ASTM-D3759
Elongation : ASTM-D3759
Holding Power : ASTM-D3654
The values given are typical values and do not constitute a specification. The user should determine whether the tape is suitable for the intended application.
Product Application
Interior paint masking, Spray painting (air-dry) autos, boats, etc. Boat manufacturing (fiberglass), Silk screening, mail rooms, Marble manufacturing (man-made), Golf club shaft (build up), Carpet pad/ pad splicing, Freezer tape, and for light Bundling, Packaging, Splicing & Tabbing.
Storage
Tape should be stored in its original packaging in a cool, dry area away from direct sunlight. Surfaces to which tapes is applied should be clean, dry and free of grease, oil or other contaminants.
